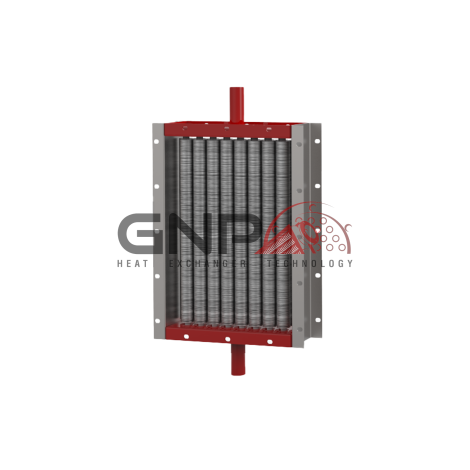

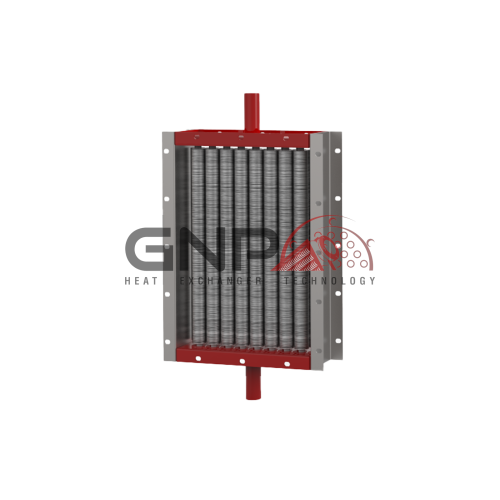

Radiator PNP 113-201-01 UHL3
Для промислового теплообміну
Power up to 34,66 kW
Connection type - flanged, threaded, welded
-
7,683 ₴Manufacturing term до 14 робочих днів
It is a standard air heater of the PVP type. Air heaters of the PNP type (steam) with bimetallic slatted-rolled fins of general-purpose heat exchange elements are used in air conditioning and ventilation systems, heating the air using heat - hot steam coming from external sources of supply.
| Type of energy carrier | steam |
| Number of rows | 2 |
| Productivity (over the air) | 2000м³ |
| Productivity (in terms of heat) | up to 34,66 kW |
| Heat exchange surface area | 6,94м² |
| Height | 450мм |
| Length | 602мм |
| Width | 130мм |
| Maximum working pressure | 1.2 MPa (12 atmospheres) |
| Weight | 16,3 kg |
