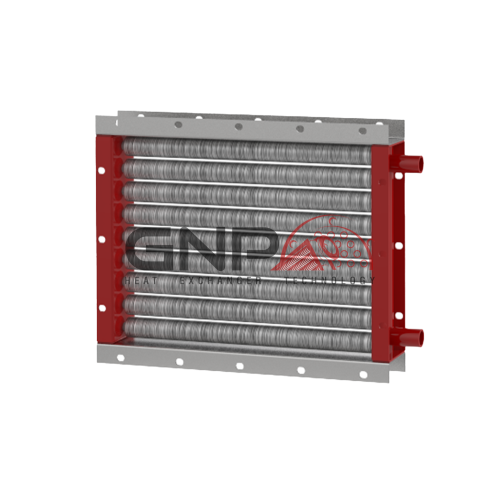

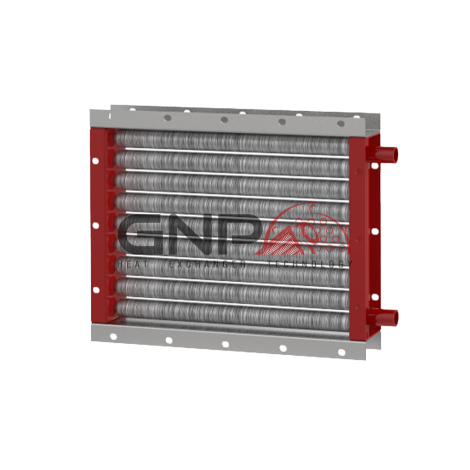

Radiator PNV 113-101-01 UHL3
Для промислового теплообміну
Power up to 17.7 kW
Connection type - flanged, threaded, welded
-
5 010 ₴Manufacturing term до 14 робочих днів
It is a standard PVN type air heater. Air heaters of the PNV type (water) with bimetallic sliding and rolling fins of heat exchange elements of general purpose are used in air conditioning and ventilation systems, they heat the air using heat - hot (superheated) water coming from external sources of supply.
| Type of energy carrier | water |
| Number of rows | 1 |
| Productivity (over the air) | 2000м³ |
| Productivity (in terms of heat) | up to 17.7 kW |
| Heat exchange surface area | 3,67м² |
| Height | 450мм |
| Length | 602мм |
| Width | 90мм |
| Maximum working pressure | 1.2 MPa (12 atmospheres) |
| Weight | 10.5 kg |
